Stops / Holders| Ives

Gravity Door Coordinator 9"

The Ives COR9G has been around for at least 50 years.   In the old days before electrically activated door closers fire doors would have fusible link armed door closers.  When the lnk melted, the door closed, and if there was not a mullion between door, they would use this style of door coordinator so the door with the astragal would close first.

When active door is open, coordinator prevents active door from closing until inactive door bypasses. Closing of inactive door causes strike plate on top of door to contact cam and lift arm, allowing active door to close. As inactive door continues closing, roller rides over strike plate on to door bracket, holding arm above active door.
Non-handed.

Gravity action arm and door bracket are adjustable on the job for ease of installation. Rubber roller provides quiet and efficient operation, and helps protect the astragal and doors from damage. Nylon roller on short arm glides smoothly over door bracket and strike, ensuring silent operation. Made of forged brass.
COR9G-26D for use on pairs of doors with astragal on active door over 4' or with astragal on inactive door over 3'4" or with astragal on both doors over 2'10" Brushed Chrome Finish.

Ives part # COR9G-26D 9" Arm Projection

The Ives Universal Dome Floor Stop FS439 is constructed of cast zinc or stainless steel, depending on the finish.   The stop measures 1-1/2" high, with a base height of 1/4" and base diameter of 1-7/8".   The pad has a height of 1-1/8" from the floor.

Ives Part Number FS439

The Ives Decorative Floor Stop FS410 is constructed of cast brass.   It measures 1-1/2" high with a 1-1/4" diameter.  Manufacture part FS410 x Finish.

Shown in Brass

4" Kickdown Door Holder FS452

The H.B. Ives FS452 is another classic kick down door stop.  It features a simple hold and release, activated with a touch of the foot, and is constructed of cast bronze or brass depending on the finish you are ordering.  A simple stainless steel spring clip holds the stop in the up position.  The non-marring rubber shoe is replaceable, and they have a corrugated bottom to prevent sliding on the floor and a secure grip.  This stop is shipped with matching finish sheet metal screws.   The 4" model is for door to floor clearances of 2" or less.  The hole spacing is 19/32" x 1-47/64".

Ives Part # FS452

4" Kickdown Door Holder FS455

The H.B. Ives FS455 is what people think about when they say Kick Down Door Stop.  This design has been around for almost 50 years and is try and true.   Durable and ascetically pleasing to look at.  This door holder features a simple hold and release, activated with a touch of the foot.  They are constructed of cast brass or aluminum depending on the finish that you are looking for.  The rubber tip is a non-marring and is corrugated on the bottom so it will not slide on the floor, and is easily replaceable, look under related products for the replacement shoe.  This holder is for door to floor clearances of less than 2".  This is an ideal door holder for the home, office, church or school.

Made by H.B. Ives

4" Kickdown Door Holder FS544

The H.B. Ives FS544 Kick Down Door Holder has been a staple in schools for many years due to its heavy duty construction and inexpensive price.  This is one of our most popular Kickdown Door Holder/Stop for the past 35 years.  It is constructed of durable cast iron, which has great strength characteristics.  The shoe is made of a non-marring rubber, which is replaceable.  The shoe is also held in place with a screw, which makes it a great option in schools and area of high vandalism.  This holder will work on door to floor clearances of 2" or less.  The hole spacing is 7/8" x 1-9/16".

Made by H.B. Ives

5" Kickdown Door Holder FS452

The H.B. Ives FS452 is another classic kick down door stop.  It features a simple hold and release, activated with a touch of the foot, and is constructed of cast bronze or brass depending on the finish you are ordering.  A simple stainless steel spring clip holds the stop in the up position.  The non-marring rubber shoe is replaceable, and they have a corrugated bottom to prevent sliding on the floor and a secure grip.  This stop is shipped with matching finish sheet metal screws.   The 5" model is for door to floor clearances of 3" or less.  The hole spacing is 19/32" by 1-47/64".

Ives Part # FS452

5" Kickdown Door Holder FS555

The H.B. Ives FS555 Kick Down Door Holder has been a staple in schools for many years due to its heavy duty construction and inexpensive price.  It is constructed of durable cast iron, which has great strength characteristics.  The shoe is made of a non-marring rubber, which is replaceable.  The shoe is also held in place with a screw, which makes it a great option in schools and area of high vandalism.  This holder will work on door to floor clearances of 3" or less.  The hole spacing is 7/8" x 1-9/16".

Made by H.B. Ives

Ives FB31P Automatic Flush Bolt

This fully automatic flush bolt is used on the inactive metal fire door.  When the active door is opened the latches retract, when the active door closes the latches extend.  The Ives FB31P Body is 1” wide by 6-3/4” long and 2” deep. Bolt throw is 3/4” with a 7/8” adjustment with a 3/4” backset,  standard rod is 12” which is measured from the center of latch body to the bolt tip.

Rods are also available in 18”, 24” and 36”, call for pricing.  We ship the 12” rods, and this set includes the top and bottom flush bolts.

3 Hour UL listed

Ives Part # FB31P

Ives FB61P Constant Latching Flush Bolt for Wood Doors

The Ives FB61P is used on the inactive leaf of wood fire doors.   The latch remains extend until the active door is opened.   When the active door is opened the latches retract, and extend when the active door is closed.  The bodies measure 1” wide by 8-1/2” tall and 2” deep.  The bolt throw is 3/4” with a 7/8” vertical adjustment, and has a 3/4” backset.   This package comes with the top and bottom flush bolts with screws and strikes.

90 minute UL Rated.

Ives Part # FB61P

Crash Chain Door Stop CS115

• Specially designed for full-size exterior doors.
• Tear resistant, grey vinyl cover.
• Heavy duty compression spring assembled to both ends of chain
  and end brackets.
• Packed with sheet metal screws.
• Cast Brass brackets with solid, welded steel chain.

Available in 20-1/2", 25-1/2" and 30-1/2" lengths. Length is determined
by the location of your door closer

PART # LENGTH
GCC205 20-1/2"
GCC255 25-1/2"
GCC305 30-1/2"

Floor Dome Door Stop 1" Height FS436

We ship the H.B. Ives FS436 Floor Dome Stop, another product made by Ives that has been around for 50 plus years.  Take a walk around a school made in the 1960's and you will probably find this door stop, or the hole were it used to be.  This Dome Stop is used on doors without thresholds that have a bottom of the door to floor clearance of less than 5/8".  The are constructed of cast aluminum or cast bronze depending on the finish you are looking for.  The rubber stop is non-marring and replaceable.  The stop has a base that is 1-3/4" x 2" oval, an overall height of 1" and a base height of 3/16".

Floor Door Stop / Holder FS446

The Ives FS446 Door Stop and Holder is a modification of the FS444, which is the non holder version.   It is considered a manual type floor holder, because you have to manually latch the holder for it to hold the door open.  It is constructed of cast bronze or brass, and is no longer available in a cast aluminum.  It is designed for doors with up to 2-1/2" of undercut, meaning the distance between the finished floor and the bottom of the door. It measures 3-3/4" overall height with a 2-1/2" diameter, and the distance from the base to the center line of the rubber non-marring stop is 2-1/2".  This stop is packed with expansion shield and lead shield.

Floor Door Stop / Holder FS40

This floor mounted door holder has been around since the 1960's. It used to go by the name Glynn Johnson GJF40A or F40A, and was brought over to the H.B. Ives line in the 1990's. Many schools and hospitals have this door holder in use today. It features: Automatic door holders ideal for heavy-traffic situations that require a simple, fool-proof, Hold-Open device. Forged from brass. Unit is activated automatically when door is opened. A firm pull on door releases the mechanism. Strikes accommodate different door to floor clearances. Model numbers are determined by strike/door-to-floor clearances. Holder position on door is adjustable.

Door to Floor Clearance 1/2" or less
Holder Dimensions 3" Wide x 3-11/16" High

Floor Door Stop / Holder FS41

This floor mounted door holder has been around since the 1960's. It used to go by the name Glynn Johnson GJF41A or F41A, and was brought over to the H.B. Ives line in the 1990's and now goes by the part # FS41. Many schools and hospitals have this door holder in use today. It features: Automatic door holders ideal for heavy-traffic situations that require a simple, fool-proof, Hold-Open device. Forged from brass. Unit is activated automatically when door is opened. A firm pull on door releases the mechanism. Strikes accommodate different door to floor clearances. Model numbers are determined by strike/door-to-floor clearances. Holder position on door is adjustable.

Door to Floor Clearance 9/16" to 1-1/16"
Holder Dimensions 3" Wide x 3-11/16" High

Floor Door Stop / Holder FS42

This floor mounted door holder has been around since the 1960's. It used to go by the name Glynn Johnson GJF42A or F42A, and was brought over to the H.B. Ives line in the 1990's and now goes by the part # FS42. Many schools and hospitals have this door holder in use today. It features: Automatic door holders ideal for heavy-traffic situations that require a simple, fool-proof, Hold-Open device. Forged from brass. Unit is activated automatically when door is opened. A firm pull on door releases the mechanism. Strikes accommodate different door to floor clearances. Model numbers are determined by strike/door-to-floor clearances. Holder position on door is adjustable.

Door to Floor Clearance 1-1/8" to 1-9/16"
Holder Dimensions 3" Wide x 3-11/16" High

Floor Door Stop / Holder FS43

This floor mounted door holder has been around since the 1960's. It used to go by the name Glynn Johnson GJF43A or F43A, and was brought over to the H.B. Ives line in the 1990's and now goes by the part # FS43. Many schools and hospitals have this door holder in use today. It features: Automatic door holders ideal for heavy-traffic situations that require a simple, fool-proof, Hold-Open device. Forged from brass. Unit is activated automatically when door is opened. A firm pull on door releases the mechanism. Strikes accommodate different door to floor clearances. Model numbers are determined by strike/door-to-floor clearances. Holder position on door is adjustable.

Door to Floor Clearance 1-5/8" to 2-11/16"
Holder Dimensions 3" Wide x 3-11/16" High

The F20 or GJF20 was a mainstay of Glynn-Johnson for years.  When the Glynn-Johnson door stop line merged with H.B. Ives it became the FS20.  This door stop has been discontinued from Ives, but we have been able find a large stock.   This Floor Mounted Door Stop also holds the door open, when in the latched position you can push the door and the holding latch will flip up and unlock thee holding clip.   It is constructed of cast bronze or brass and then plated to your desired finish.   This stop has a 2-1/2" long base that is 1-1/2" wide.  The overall height is 3-1/8" with a 2-5/16" floor to rubber stop centerline.    For use with door undercut up to 2-1/2".

Floor Door Stop-Security  FS18 is designed for areas of high vandalism.   The molded rubber is flame resistant and mounted to a 5/8" threaded mounting shaft.  Once the 7/8" diameter hole is drilled to a depth of 2-1/2" it can be grouted in concrete and leaves no exposed fasteners.  The recommended grout is Thorogrip.  They are ideal for jail or security cell areas.  There are two versions of this door stop one projects 1-1/2" (FS18S) out of the floor and the other 3" (FS18L).

The Floor Door Stop FS434 is another one the old Ives parts that has been around for about 40 plus years.   The FS434 is constructed of burnished wrought steel, with a soft, resilient gray rubber shoe.  The shoe is replaceable and is under related products.  The stop measures 2-5/8" overall height, and the base measures 1-1/2" wide by 2-3/4" long.  This door stop ships with all the fasteners and anchors needed.

Floor Door Stop FS434 09-318 Rubber Only

Replacement rubber shoe for the FS434.  Rubber measures 2-1/4" high by 1-7/16" wide by 5/8" thick.

Ives Part # 09-318

Floor Door Stop FS442

This Floor Mounted Door Stop used to go by the name Glynn Johnson GJFB19 or FB19. When Ingersoll Rand purchased H. B. Ives in the 1990's they brought it over under the Ives Floor Mounted Door Stop FS442. Features: Designed to blend well with all types of construction and provide a minimum of hindrance to cleaning efforts. Accommodates door undercut up to 2". Heavy-Duty cast brass or aluminum construction. Non-marring rubber bumper. This door stop has an overall height 2-7/8". Mounted shield and screws included.

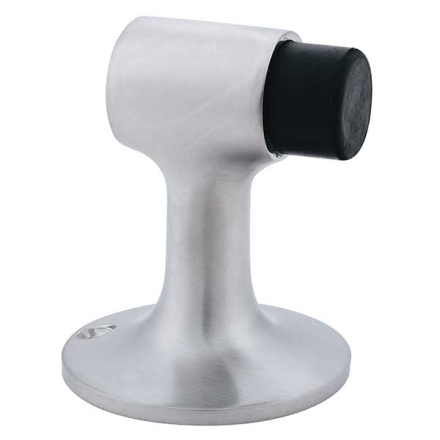

Floor Door Stop FS444

This door stop has been around a long time. We have been selling it for the past 35 years, and it is one of our best sellers year in and year out.

Features: Ideal for interior or exterior use. Cast brass construction. Accommodates door undercut up to 2-1/2". Non-marring rubber tip. Packed with expansion shield and lead shield. This Floor Mounted Door Stop is 3" high, and the base has a 2-1/2" diameter.

For use on commercial applications.
• Exceeds OSHA and BHMA strength test requirements.
• Packed with square head iron lag screw, expansion shield and screws.
• Cast Aluminum construction.

Dimensions
Base Diameter: 3-1/8"
Base to Rail Center: 3-1/8"

Floor Door Stop Dome 1-3/8" FS438

We ship the H.B. Ives FS438 Floor Dome Stop, another product made by Ives that has been around for 50 plus years.  Take a walk around a school made in the 1960's and you will probably find this door stop, or the hole were it used to be.  This Dome Stop is used on doors without thresholds that have a bottom of the door to floor clearance of less than 5/8".  The are constructed of cast aluminum or cast bronze depending on the finish you are looking for.  The rubber stop is non-marring and replaceable.  The stop has a base that is 1-3/4" x 2" oval, an overall height of 1-3/8" and a base height of 9/16".

Door Holder / Stop Rubber Shoe

Replacement Rubber Shoe
5/8" insert diameter
1" base diameter
7/8" overall height

Ives Part # HRT or FSPART.1075

Rubber Shoe For GJ1154M and GJL444-555 Kickdown Door Stop / Holder

Replacement rubber shoe
5/8" insert diameter
1" base diameter
8-32 threaded screw

Kickdown Door Stop / Holder Rubber Shoe

Rubber Shoe for old style GJL444/555 and old style style GJ44's

1" base diameter
13/16" over all height
5/8" outside thread diameter

Ives FB458 Metal Door Flush Bolt

The Ives FB458 is a UL Listed Flush Bolt for use on Fire Doors. The face plate measures 1" wide by 6-3/4" long with a depth of 1-1/8". Hole spacing is 1/2 inch by 6-1/4 inches on centers. The bolt has a 3/4" throw and is 1/2" diameter. This Flush Bolt is available in Polished Brass, Oil Rubbed Bronze (dark brown) and Brushed Chrome. We try to stock the 12" rods, which are standard, but we can also get 18", 24", 36" and 48"

Ives Part # FB458

The Ives Plunger Door Holder / Stop FS1153 is manufactured by H.B. Ives and features a contemporary yet economical method of positive Hold-Open.  This was another one of the Glynn-Johnson door stops that was merged in the H.B. Iver product line in the 1990's, and went by the 1153 part number.  This door stop is constructed in sturdy cast aluminum for years of service.  The spring operated plunger activates with minimal pressure, releasing instantly with a light tap on the plat-form lever.  The stop has a 1-5/8" throw or projection for all types of doors.  The ribbed non-marring rubber shoe is securely fastened to unit with a screw and is easily replaced when worn.  These are sometimes called pop-up or push down stops.  Ships with mounting screws.

Aluminum finish only

The Ives Plunger Door Holder / Stop FS1154 has been around for about 50 years.  Before the 1990's is was known as the Glynn-Johnson 1154, and when they were merged in the H.B. Ives line, the part number was changed to FS1154.  This product is constructed of cast brass or bronze that is then plated to the desired finish.  Plunger and internal parts are plated steel and provide a 1-1/4" throw for all types of doors.  Plunger is easily activated with minimal pressure, releasing instantly with a light tap on the platform lever.  The shoe is non-marring rubber that is securely fastened with a screw in flanged cup to prevent movement or loss, and when worn, shoes are easily replaced and are kept in stock as the GJ1154.  These are sometimes called pop-up or push down stops.  Ships with matching finish mounting screws.

The Ives Roller Bumper Offset RB470 are ideal if you have situations where doors meet each.   They are constructed cast brass or bronze and are then plated to the desired finish.   The arm projects 5" and the base has a 1-11/16" x 2-1/4".   The device was just like the Glynn-Johnson RB3 or GJRB3.

The Ives Roller Bumper Straight Arm 4" RB471 are ideal if you have situations where doors meet each.   They are constructed cast brass or bronze and are then plated to the desired finish.   The arm projects 4-1/2" and the base has a 2" diameter.   The device was just like the Glynn-Johnson RB4 or GJRB4.

The Ives Roller Bumper Straight Arm 6" RB472 are ideal if you have situations where doors meet each.   They are constructed cast brass or bronze and are then plated to the desired finish.   The arm projects 6" and the base has a 2" diameter.   The device was just like the Glynn-Johnson RB6 or GJRB6.

Ives RL30 Roller Latch

The Ives Roller Latch RL30 is constructed of Forged Brass and Plated to your finish.   Furnished with a Nylon Roller.   Body measures 1" wide by 3-3/8" high by 1-11/16" deep. The roller has a maximum projection of 3/8" and is easily adjustable.

Ives RL32 Roller Latch

The Ives RL32 Roller Latch is constructed of Brass and Plated to your desired finish.  The body measures 1-1/8" wide by 2-1/4" high and 2-1/4" deep.  The roller is constructed of Nylon, and has an adjustable projection up to 1/2".  Fits a standard heavy-duty cylindrical lock cutout.
