Yale

Yale 1500 Exit Device

1500-36 For openings up to 36" (0.91m) wide.
1500-48 For openings up to 48" (1.22m) wide.
Strikes 799 Rim Strike (Single Doors)
Stile Minimum Stile width: 4-1/2" (114mm)
Hand Field Reversible

Yale 7100 Exit Device

Door Opening Width:
-36 for 30" - 36" (762 - 914mm) doors
-48 for 36-1/2" - 48" (927 - 1219mm) doors
Door Thickness: 1-3/4" (44mm) standard.
Minimum Stile Width: 4-1/2" (114mm)
Projection: 3-1/4" (83mm) active, 2-3/4" (70mm) dogged
Latchbolt: 3/4" (19mm) deadlocking stainless steel Pullman-type
Strike: 757 (panic),

Yale 7000 Lever Trim

Yale 2100 Exit Device

Door Opening Width:
-36 for 30" - 36" (76.2cm - 91.4cm) doors, Actual width is 31-3/4"
-42 for 36" - 42" (91.4cm - 107cm) doors, Actual width is 37-3/4"
-48 for 36-1/2" - 48" (92.7cm - 121.9cm) doors, Actual width is 43-3/4"
Door Thickness: 1-3/4" (44mm) standard.
Minimum Stile Width: 4-1/2" (114mm)
Projection: 2-1/2" (64mm) active, 1-3/4" (44mm) depressed

Aluminum is in stock, Dark Bronze has a 2 week lead time

• Through-bolted: 1-3/4" (44mm) door standard. For doors through 2-1/4" (54mm)
• Plate Dimensions: 3-1/2" x 3-3/4" x 3/32" (89mm x 95mm x 3mm)
• Finger Pull Dimensions: 3-1/2" x 6-3/4" x 1/8" (89mm x 171mm x 3mm)

Yale 7150 Chassis Assembly, Yale Part # 60-7150-0005-048

Yale 7250 Series Latch Assembly

This latch assembly is used on the Yale 7250 Rim Device with the Square Bolt Latch.

Yale Part #60-7250-0001-048

Note the Hub Position for this Assembly is the  7200

Yale 7110 Top Latch 60-7010-0049-999

Yale 7110 Top Latch for the Non Fire Rated Yale 7000 Series Surface Vertical Rod.

Yale Part # 60-7010-049-999

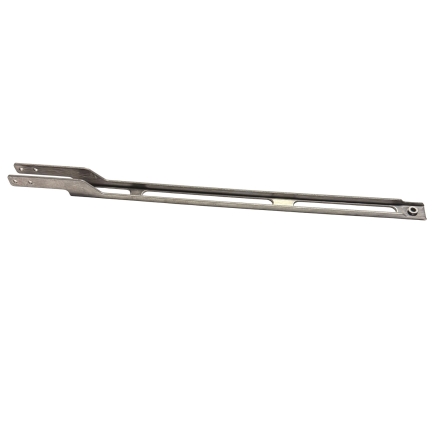

Yale 7200 Latch Assembly, used on the Narrow Stile Exit Device.

Yale Part # 60-7200-0354-048

Note the position of the hub on this latch is the 7200

Top Latch for the Yale 7120 Concealed Vertical Rod Exit Device.  Yale part number 60-7020-0057-000

The Panic Hex Key 5/32" X 2-1/8" Long is usually used on Dor-O-Matic, Falcon, Corbin Russwin, Von Duprin 55 and 88 and Yale panic hardware.  This Hex Dog Key is not long enough for the Von Duprin 33, 34, 33A, 35B, 98 or 99 Exit Devices.  Also known as Hex Key, Dog Key, Allen Key, Dogging Key

The Panic Hex Key 5/32" x 3-1/16" Long is a must for Von Duprin 22, 33, 35, 98 and 99 panic hardware.   This key has a longer shaft to reach deeper into the Von Duprin Panic Devices.   This key is also known as Hex Key, Dog Key, Allen Key,  and Dogging Key.

Yale 7100F Series Latch Assembly

This Yale Latch Assembly is used on fire rated panic devices. A fire rated panic is a device were you can not lock the latch in the open position. It is used on doors were the engineers want the door to latch every time it closes to contain a fire.

Yale Part # 60-7000-0425-048

Note the Hub Position of this latch is the 7100

Yale 7100 Series Latch Assembly

This latch assembly is used on non fire rated doors, meaning panic devices that you can not dog open with the allen key or key cylinder. Non fire rated doors are usually exterior doors.

Yale Part # 60-7000-0419-048

Note the position of the Hub for this Assembly is the 7100

Yale Trim Spring Blue

Also used on Corbin Russwin and Yale Lever trims. The Blue Spring is for RHR or LH doors. The spring has an outside diameter of 1-1/4".

Yale Part # 60-7000-1224-999
Corbin Russwin # 651F62

Yale Trim Spring Red

Same part as the Corbin Russwin Lever Trim Spring. Used on Yale and Corbin Russwin LHR or RH Doors. The spring has an 1-1/4" diameter.

Yale Part # 60-7000-1225-999
Corbin Russwin # 651F61

Yale 7110 Bottom Latch 60-7010-0054-000

Yale 7000 Touch Bar End Cap-Front

Yale Part # 60-7000-6115

Yale 7000 Exit Device Dogging Assembly

Dogging assembly uses a 5/32" dog key

Yale Part # 60-7000-406-999
Sometimes call the 60-7000-0406-048

Yale 7000 Series End Cap

Yale Part # ECK7

Newer impact resistant end cap. Replaces all of the older version end caps for the Yale 7000 series.

Shown in stainless steel.

Yale 2100 Series Dogging Assembly

yale Part # 60-2100-1001-999

Yale 2100 Series Latch Assembly

Latch assembly for the Yale 2100 Rim Panic Device.   Assembly base measures 7-3/4" high by 5-1/2" wide with a projection of 2-1/4".

Yale Part # 60-2100-0010-048
