Dor-O-Matic Panic Devices
Dor-O-Matic Falcon panic devices are a reliable solution for emergency egress, but are designed specifically for narrow framed aluminum storefront doors. All of their commercial door Falcon panic devices are designed for mounting on frames with a minimum of 1-3/4” stile width.
Dor-O-Matic Falcon panic devices are offered in rim and concealed vertical rod versions. If you would like to upgrade your commercial doors with new Dor-O-Matic Falcon panic devices, we can help you.
We are online suppliers of Falcon panic devices. We also have Falcon panic devices replacement parts if you need to make some repairs to the exit devices that you currently own.
Shipping Dor-O-Matic Falcon Panic Devices
In-stock Dor-O-Matic Falcon panic devices and other commercial door hardware ship within 24 hours from our warehouse in Troy, Michigan. Non-stock Falcon panic devices ship from Indianapolis, IN.
Place your order online or contact us at 1 (800) 642-2403 to speak with a representative today. We would love to help answer your questions about shipping Falcon panic devices to get you what you need.
Dor-O-Matic Falcon Panic Devices And Hardware
Dor-O-Matic Falcon 990/1990 Series – The 990/1990 exit device series is Dor-O-Matic’s crossbar concealed vertical rod panic device. It features hardened steel latches and adjustable strike. Introduced in the late 1960’s, it is one of the most popular devices in the commercial door industry today.
Although the 990 series is no longer manufactured, most of the 1990 series exit device parts will work with it. If you need to replace a 990 series exit device, the 1990 is an exact replacement. These Falcon panic devices are non-handed when sold complete, however, some of the replacement parts are handed.
Dor-O-Matic Falcon 1090/2090 Series – The 1090/2090 series is a crossbar style rim panic device. These Falcon panic devices along with the 990/1990 concealed vertical have been the mainstay of the Dor-O-Matic Falcon product line since the late 1960’s.
The 1090’s are no longer produced, but the 2090 series exit device is an exact replacement. This device is handed and is usually used on narrow stile metal doors, but you can purchase adaptor plates and use it on any style of commercial door.
Dor-O-Matic Falcon 1390 Series – The 1390 panic device series was a concealed vertical rod mid panel device. It was introduced in the late 1970’s and was manufactured up until about 2001. Most of the parts for these Falcon exit devices models are no longer available, but some of the latches are the same as the other models. Call or email us for more information on this series of Falcon panic devices.

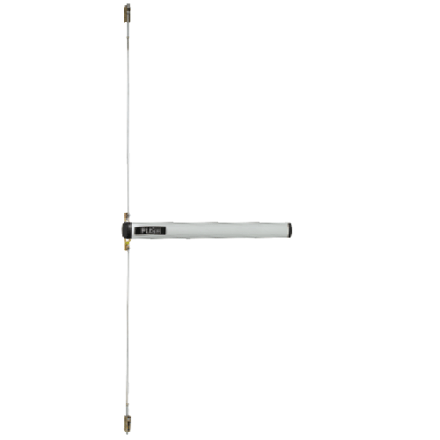

Dor-O-Matic Falcon 1490 Series – The 1490 series is a concealed vertical rod device and is considered their most heavy-duty commercial door panic device. It is built with rugged steel operating mechanisms and heavy-duty end caps. Like all Dor-O-Matic Falcon panic devices, this series has a Grade 1 rating, the highest possible.
Dor-O-Matic Falcon 1590 Series – The 1590 series is a rim device and is considered their most heavy-duty rim style panic device. It is built with rugged steel operating mechanisms and heavy-duty end caps. These particular Falcon panic devices also have a Grade 1 rating.
Dor-O-Matic Falcon 1690 Series – The Dor-O-Matic 1690 panic device is a concealed vertical rod device. This exit device was introduced in the mid 1990’s as a replacement for the Dor-O-Matic 1990 series. The 1690 can be used to retrofit the 1990, and uses the same rods and latches.
The Dor-O-Matic 1690 can also come with electric latch retraction to control entry into your building. With cast metal center cover and end caps, these are very heavy-duty Falcon panic devices for your commercial doors.
Dor-O-Matic Falcon 1790 Series – The 1790 series is a rim device and has the same look as the Dor-O-Matic 1690 series exit device, but it has latches on the side of the exit instead of the top and bottom. The 1790 series was introduced in the mid 1990’s as a replacement for the Dor-O-Matic 2090 series.
The 1790 can be used to retrofit the 2090 and uses the same hole spacings. This series of Falcon exit devices can also come with electric latch retraction to control entry into your building. These Falcon exit devices also have cast metal center cover and end caps and are very heavy-duty.
Dor-O-Matic Falcon 2390 Series – The 2390 panic device series is a concealed vertical rod mid panel device that was the replacement for the 1390. Introduced in 2001, these are heavy-duty Grade 1 Falcon panic devices. A mid panel device is a panic device that is mortised into the door, so it projects out less than standard commercial Falcon panic devices.
Dor-O-Matic Falcon Parts – We have one of the largest inventories of complete Dor-O-Matic Falcon panic devices and repair parts in the United States. Call or email for part breakdowns and installation instructions for your Falcon panic devices.
Dor-O-Matic Falcon Exit Devices Manufacturer
Dor-O-Matic got its start around 1955 in Chicago, Illinois. The products that they produced were pivots and door closers for storefront doors. They were known for their offset pivots sets, floor, overhead door closers and automatic door openers. In the late 1960’s, they also introduced some commercial door exit devices.
Dor-O-Matic was sold to Republic Industries in the late 1970’s and then to Newman Tonks in the 1980’s. In April of 1997, the door hardware company was purchased by Ingersoll Rand.
In 2007, they changed the name to Falcon and put all of the Dor-O-Matic and Monarch Brands under that name. Today, the Falcon panic devices and commercial product line is under the umbrella of Allegion along with other commercial door manufacturers such as Von Duprin, LCN, Schlage and many more.
If you would like to learn more about the Falcon panic devices you wish to purchase, please reach us by phone or email. We want you to be completely content with the Falcon panic devices and door hardware that you buy from our website.
-
Dor-o-Matic EL1590 Rim Panic Device
Effective December 20, 2024 the EL1590 has been discontinued. Falcon Doromatic is working on retro-fit plates to work with the MEL1690.
Dor-o-Matic/Falcon EL1590 Panic Device with Electric Latch Retraction
The Dor-o-matic 1590 is our heaviest device and offers a clean appearance with push pad styling and a variety of practical features. The Dor-o-matic 1590 is built with rugged steel operating mechanisms, and durable aluminum push bars and end caps.
Requires a Power Supply
Replacement parts are also available
Shipped with all screws and strikes.
EL1590EO- -
Falcon Dor-O-Matic STK45 Surface Strike
Falcon Dor-O-Matic STK45 Surface Strike
This strike is used when we have a double door application without a center post. By using this strike we can have one door with a surface vertical rod and one door a rim device, which will save money because vertical rods are usually expensive. This strike can be used with the 1590, 1790 and 2090 Rim Devices. The strike base measures 1-5/16" wide by 3-1/4" high, and 1/4" thick. The three slots are 1-1/4" on center. This strike ships with the mounting screws.
US19-Black finish
STK45 -
Dor-o-Matic 1690/1990 Top Strike PB48
The Dor-o-Matic 1690/1990 Top Strike PB48 is used on the Dor-o-Matic 1690, 1990 and 2390 Concealed Vertical Rod Exit and Panic Devices. The plate measures 1" x 1-1/16" with 4 holes. The mounting holes are 11/16" x 11/16" on center. The diameter of the pin is 7/16" and projects out 5/32". Ships with mounting screws and 3 shim plates. The Dor-o-Matic Panic Devices have been around since the late 1960’s, but have most recently been known as the Falcon Panic Device from a name change they had in about 2008. They are basically the same device, with the same parts, just a different name plate. Falcon part # PB48.
Dor-o-Matic/Falcon 990/1990 Repair Parts Breakdown
Dor-o-Matic/Falcon 1690 Repair Parts BreakdownG199034 -
Dor-o-Matic Panic Device 2090 / 1790 Standard Strike
The Falcon / Dor-o-Matic Panic Device 2090 / 1790 Standard Strike is the strike shipped with all new Falcon 2090 and 1790 exit devices. The strike measures 1-3/4" high, 1-3/4" deep and only comes in a Black Matte color. This strike was known for a long time as the Dor-o-Matic SD36 Strike, but after changing there name to Falcon in about 2008, it is know known as the Falcon SD36 Strike.
G2090STK -
Doromatic TD35 Roller Strike
The Falcon TD35 Roller Strike is used with the Dor-o-Matic Falcon 1590, 1790, and 2090 panic device where you are trying to protect the frame when the door closes. The strike has been manufactured since the 1970's. This part is also known as a Kawneer 133479 strike. The strike ships with mounting screws in a painted black finish. This style of strike is also known as a Blade Strike.
Doromatic Falcon Part # TD35 or 4270107393
GTD35 -
Dor-o-Matic 1690 Panic Device
The design of the Doromatic 1690 is ideal for demanding, high-traffic applications. The vertical rods and latch mechanisms are concealed in the vertical door stile, ensuring trouble-free operation. Cast metal cover plates and end caps hold up to rigorous use. A quick, singlepoint dogging feature in the housing deactivates the device, permitting unrestricted traffic flow. The Doromatic 1690 may also be used to retrofit a Doromatic 1990 Series crossbar device.
Replacement parts are also available
Shipped with all screws and strikes. The 1690NL Cylinder Assembly (169CA) is required if you wish to use a key cylinder on the exterior, SEE RELATED PRODUCTS toward the bottom of the page.
1690EO -
Falcon / Dor-o-Matic MEL1690 Panic Device
The same as the Falcon / Dor-o-Matic 1690 with Mechanical Electric Latch Retraction. Some of the features are listed below. A power supply is required.
Hand: Field reversible, non-handed.
Centercase and end cap are powder-coated black only.
Strikes: PB48 top.
Latches: Hex bottom latch (standard), RL - rod bottom latch, PL - Pullman bottom latch
Cylinder: Rim, key entry (NL) or hold back (HB) feature available.
Field selectable.
Sizes: 30", 36", 42", and 48".
Doors: 1-3/4" thick metal doors, specify if other.
Projections: 3-3/8" in neutral position, 23/8" in dogged position.
Pushbar height is 2-1/2.
Stile: 1-3/4" minimum.Replacement parts are also available
Shipped with all screws and strikes.
MEL1690EO- -
Falcon Mechanical Electric Latch (MEL) Retrofit Kit 47867200
New for 2024 the Falcon MEL 47867200 Mechanical Latch Retraction. Retrofits all 1690, 1790, 24 and 25 Series devices to Mechanical Latch Retraction. This new system uses the PS902 Power Supply. The benefits for the MEL Series over the Older EL series are lower power draw (1 amp verse 16 amp), and more flexible power supply location, longer wire runs and thinner guage wires.
G47867200 -
Dor-o-Matic 1790 Panic Device
The Doromatic 1790 rim device is typically used in applications where maintenance is a concern because the rim device has fewer parts and pieces than current exit devices. The result is less maintenance and adjustment. The streamlined design has no openings for chains, reducing the risk for code infringements and offering increased building security by eliminating the possibility of tampering and forced entry through the use of coat hangers and other tools. The Doromatic 1790 may also be used to retrofit a Doromatic 2090 series crossbar device.
Replacement parts are also available
Shipped with all screws and strikes. If you wish to use a key cylinder on the exterior, you will need the 1790 NL/HB Cylinder Assembly, 179CA.
1790EO -
Falcon / Dor-o-Matic MEL1790 Panic Device
Falcon / Dor-o-Matic EL1790 Panic Device
The same as the Falcon / Dor-o-Matic 1790 with Mechanical Electric Latch Retraction. Some of the features are listed below. A power supply is required.
Hand: Field reversible, non-handed.
Centercase and end cap are powder-coated black only.
Cylinder: Rim, key entry (NL) or hold back (HB) feature available.
Field selectable.
Sizes: 30", 36", 42", and 48".
Doors: 1-3/4" thick metal doors, specify if other.
Projections: 3-3/8" in neutral position, 23/8" in dogged position.
Pushbar height is 2-1/2.
Stile: 1-3/4" minimum.1 amp, 24 volt
Replacement parts are also available
Shipped with all screws and strikes.
MEL1790EO- -
Dor-O-Matic 2090 Panic Device
The Dor-O-Matic 2090 Panic Device has been around since the early 1970's. Even though it is now called the Falcon 2090 Panic Hardware, it is the same exact device. The 2090 provides balanced appearance, dependable performance and economical pricing, making it a popular choice where rim exit devices are required. The package includes both housings, 41" crossbar (that can be cut in the field), mounting screws and strike.
Hand: Specify RHR or LHR, not reversible. See Below
Left Hand Reverse shown in picture
Latchbolt: 1/2" throw hardened steel.
Dogging Feature: Hex dogging standard.
Sizes: Field adjustable width, 41" crossbar standard, fits
3' 8" door width, extra length crossbars available.
Doors: 1-3/4" thick metal or wood doors, specify if wood door.
Projections: 4-3/8" extended, 2-1/2" depressed.
Stile: 1-3/4" minimum.Replacement parts are also available
G2090EO -
Doromatic 1990 Panic Device
The Doromatic 1990 Panic Device has a long history of reliable performance. Although it is now called the Falcon 1990, they are the same device. This device is non handed, meaning it can go on left hand or right hand door. The standard included 41" crossbar will work on doors up 3'8" wide, and the stardard rods will work on a 7' door. It is equipped with hardened steel latches and adjustable strike to ensure safety, security and quiet operation. The package includes all of the mounting screws and strikes.
Hand: Field reversible, non handed.
Dogging Feature: Hex dogging standard.
Cylinder: Rim, key entry (NL) or hold back (HB) available
(field selectable)
Sizes: Field adjustable width, 41" crossbar standard fits 3' 8" x 7'
door, extra length cross bar available.
Doors: 1-3/4" thick metal doors.
Projections: 4-3/8" extended, 2-1/2" depressed.
Stile: 1-3/4" minimum.G1990EO -
Dor-o-Matic 1990 Housing and 1090 2090 Inactive Housing DCX
The Dor-o-Matic 1990 Housing and 1090 2090 Inactive Housing DCX has been around since the early 1970's. Although it is now called a Falcon 1990, it is still the same device. This housing is also the inactive housing on the Dor-O-Matic / Falcon 1090 and 2090 panic hardware. The housing includes all of the interior springs, arm, and dogging screw. Housing measures 7-1/2" long by 1-3/16" wide. The center to center distance of the mounting studs is 6-1/4".
LEFT HAND SHOWN IN PICTURE
See diagrams for handing.
Doromatic part #
4270902784 - right hand dark brown
4270902782 - right hand aluminum
4270902785 -right hand black
4270902778- left hand dark brown
4270902776 - left hand aluminum
4270902779- left hand blackG199001 -
Dor-o-Matic 1990/2090 Cross Bar CBAR
The Dor-o-Matic 1990/2090 Cross Bar CBAR is used on the 990, 1090, 1990 and 2090 Dor-o-Matic and Falcon panic hardware. The bar is 41" and 48" long and is easily cut in the field with a chop or hack saw. The bar is constructed of extruded aluminum and then anodized to the correct finish. The slot where the screw threads in is not threaded, but the screws, sold separately, are thread forming screws. The 41" bars are in stock, the 48" bars have a 3 week lead time
The Dark Bronze Cross Bars are a very dark bronze and will be closer to black.
Doromatic part # CBAR/ 47285197 for the 41" bars, and 47286482 for the 48" bars.
Dor-o-Matic 990/1990 Repair Parts Breakdown
Dor-o-Matic 1090/2090 Repair Parts BreakdownG199039 -
Doromatic Exit Device 2090 Active Case
The Doromatic Exit Device 2090 Active Case is for use on the 1090 and 2090 panic hardware. This device has been around since the early 1970's, and is now called the Falcon 2090 Active Case, but it is the same piece. Includes all of the interior hardware. Just unscrew or loosen the three set screws and remove your old case and install and tighten the three set screws. Housing measures 7-1/2" long by 1-3/16" wide, mounting studs have a 6-1/4" center to center distance.
LEFT HAND HOUSING SHOWN IN PICTURE
4270902740 Left Hand Aluminum Stock
4270902742 Left Hand Dark Brown Stock
4270902743 Left Hand Black * One week lead time
4270902746 Right Hand Aluminum Stock
4270902748 Right Hand Dark Brown Stock
4270902749 Right Hand Black * One week lead timeG209001 -
Falcon 2390 231CA Cylinder Kit
The Falcon Doromatic 2390 231CA Cylinder Kit converts your 2390 exit only to a Night Latch or Hold Back function key lock. All the hardware is included in the package to convert your device, except for the Mortise Cylinder. Housing measures 4-1/2" tall by 1-11/16" wide with a 1-1/8" projection. We send the 231CA which includes the Schlage B502-191 Cam. The 239CA is the same kit, but without the Schlage Cam.
231CA- -
Dor-O-Matic 1690/1790/2390 Dogging Assembly PBX-16
Dor-O-Matic 1690/1790/2390 Dogging Assembly PBX-16
Falcon Doromatic 1690, 1790, and 2390 replacement dogging assy. The dogging assembly is used to dog the door in the open position, so people can enter the building without having to unlatch the door for the inside or with a key on the outside. The KIT.1197 comes complete with mounting screws. Some of the earlier version where riveted into the rail, so you might need to drill out the rivets, the screws shipped with KIT.1197 have self tapping thread forming screws.
Doromatic part # KIT.1197
Dor-o-Matic 1690 Repair Parts Breakdown
Dor-o-Matic 1790 Repair Parts Breakdown
Falcon / Dor-o-Matic 2390 Parts Break DownGPBX16 -
Dor-o-matic 1990 Repair Kit PBX-2
Dor-o-Matic 1990 repair kit. The kit includes the following:
4 Mounting Studs
1 Hex Key 7/32"
1 Allen Key 1/8"
1 Pinion
1 Cylinder Bushing
2 Rod Bushings
1 Retractor
1 Traveller AssyDoromatic part # 4270902091 or PBX-2
GPBX2 -
Dor-O-Matic 1690/1790/2390 Dogging Hex Shaft
The Dor-O-Matic 1690/1790/2390 Dogging Hex Shaft is the piece that your dog key (allen wrench) fits into the lock the device in the open or dogged position. This shaft is used on the 1690, 1790, and 2390 device. The Dor-o-Matic Panic Devices have been around since the late 1960’s, but have most recently been known as the Falcon Panic Device from a name change they had in about 2008. They are basically the same device, with the same parts, just a different name plate. The part that the hex key fits into is only about 1/4" deep, because of that these tend to get rounded out, so the key will not move the shaft.
To remove the old shaft just pull with a pair of Channel Locks or Pliers. To reinstall, just press it back in to position, you might have to bend the holding tabs back down, but we very rarely have to do this. The manufacture part number on this is SHAFT.101.
GPBX16-SHF -
Monarch Dor-O-Matic Falcon 600339 NL Spring Package
The Monarch / Dor-O-Matic / Falcon 600339 NL Spring Package converts the 179L , 712L, 712K, 912l and 911K to an NL function. The NL function is one were the Lever Handle can not be unlocked and left in the unlocked position when the key is removed. Spring has a 5/8" diameter. See attached instructions.
G600339 -
Dor-o-Matic Falcon EL1690-EL1790-EL2390 Solenoid
The Dor-o-Matic Falcon 4758959 Soleniod is used on the EL1690, EL1790, and EL2390 Electric Latch Retraction exit devices. The Solenoid measures 4-1/8 inches long including mouting flange, and has an 1-3/4 inch diameter. The mounting screw spacing is 1 inch on centers. The Plunger is included and has a 7/8 inch diameter and is 2-15/16 inches long. We find the number 971687 on the solenoid.
G47639878
